Extended Range Current Transformer

Views : 448
Update time : 2025-02-28 16:37:28
Introduction

For 600V (max.) power systems, these current transformers offer a 0.3 Metering Class accuracy. RECT specifications also available. Secondary side includes a short-circuiting device. Terminal cover sealable. Various window diameters and current ratios. Ideal for billing in indoor or outdoor applications, they offer ratios from 100:5A to 800:5A, with window diameters of 38mm, 66mm, and 78mm. Standard RECT models have an RF of up to 4.0, while RECT Specifications maintain accuracy and burden rating from 1% to 150% of rated current, exceeding typical metering-class requirements (5% to 100%). All RECT Series transformers are type-tested at Advanced Electricity Lab, meeting rigorous standards.

Features
Standards: IEEE C57.13.
Secondary side equipped with a short-circuiting device.
Terminal cover provided for the secondary side.
Sealable.
Application: Indoors, or in an outdoor enclosure.
Rated Voltage: Up to 0.72 kV.
Frequency: 50 or 60 Hz.
0.3 Metering Class.
Type-tested by a laboratory accredited by an ILAC member.
Additional customization may be requested to comply with various electrical standards and client requirements.

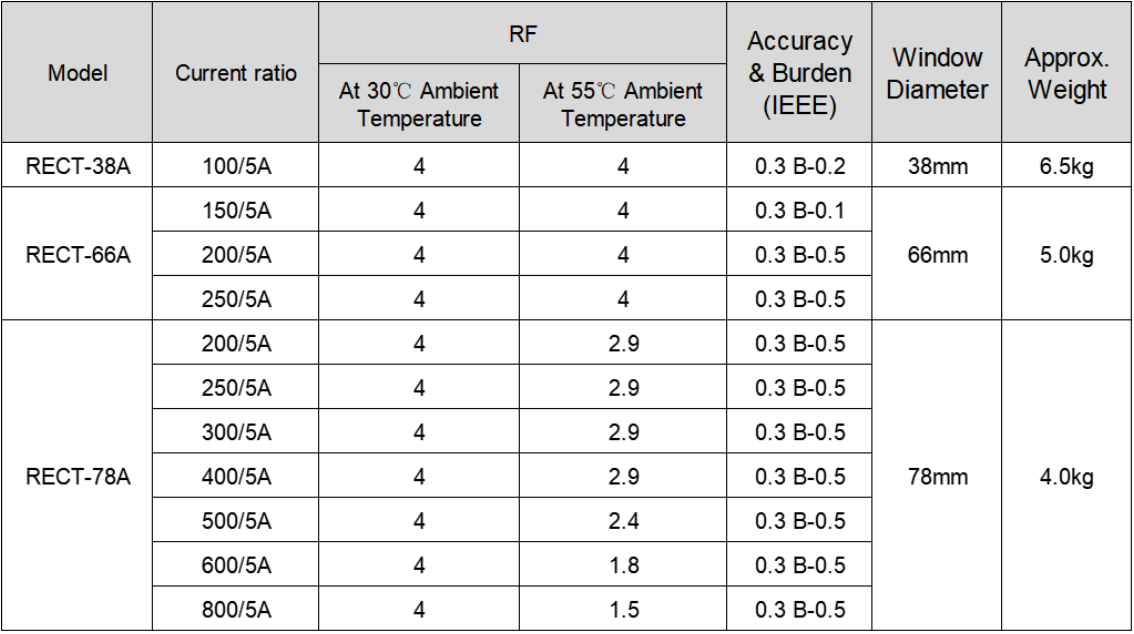

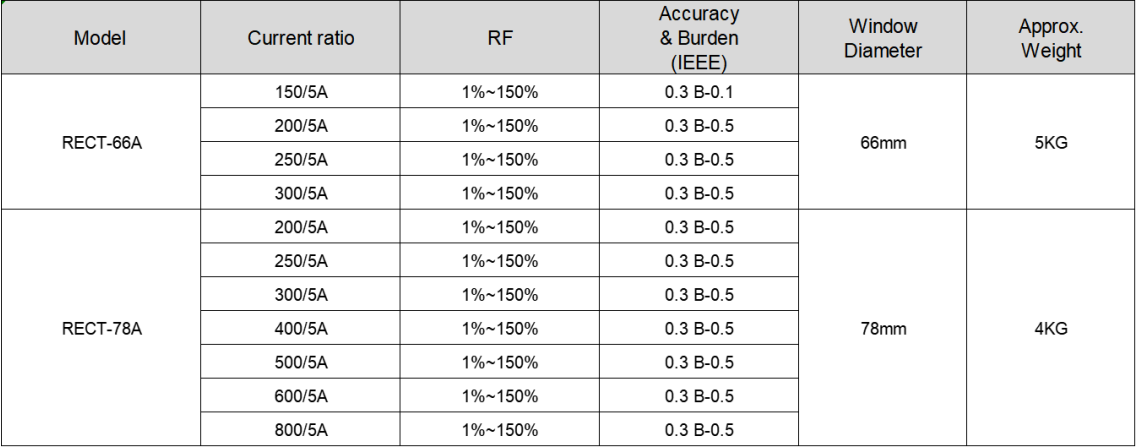

Technical Parameter

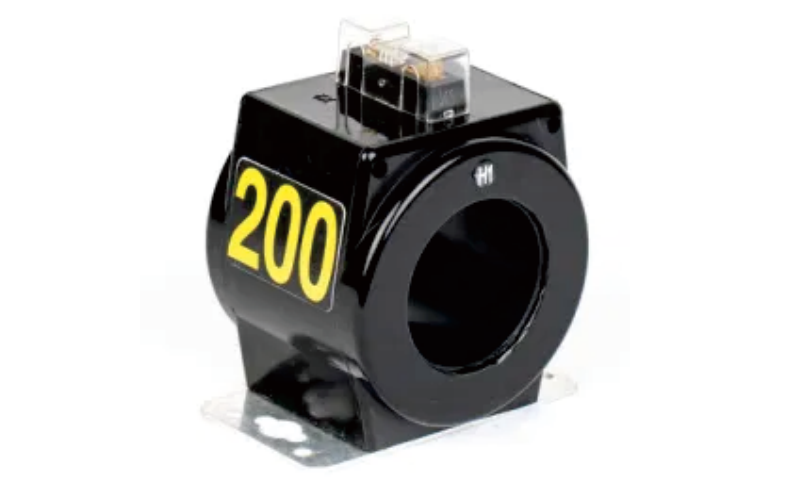

Photos



RECT

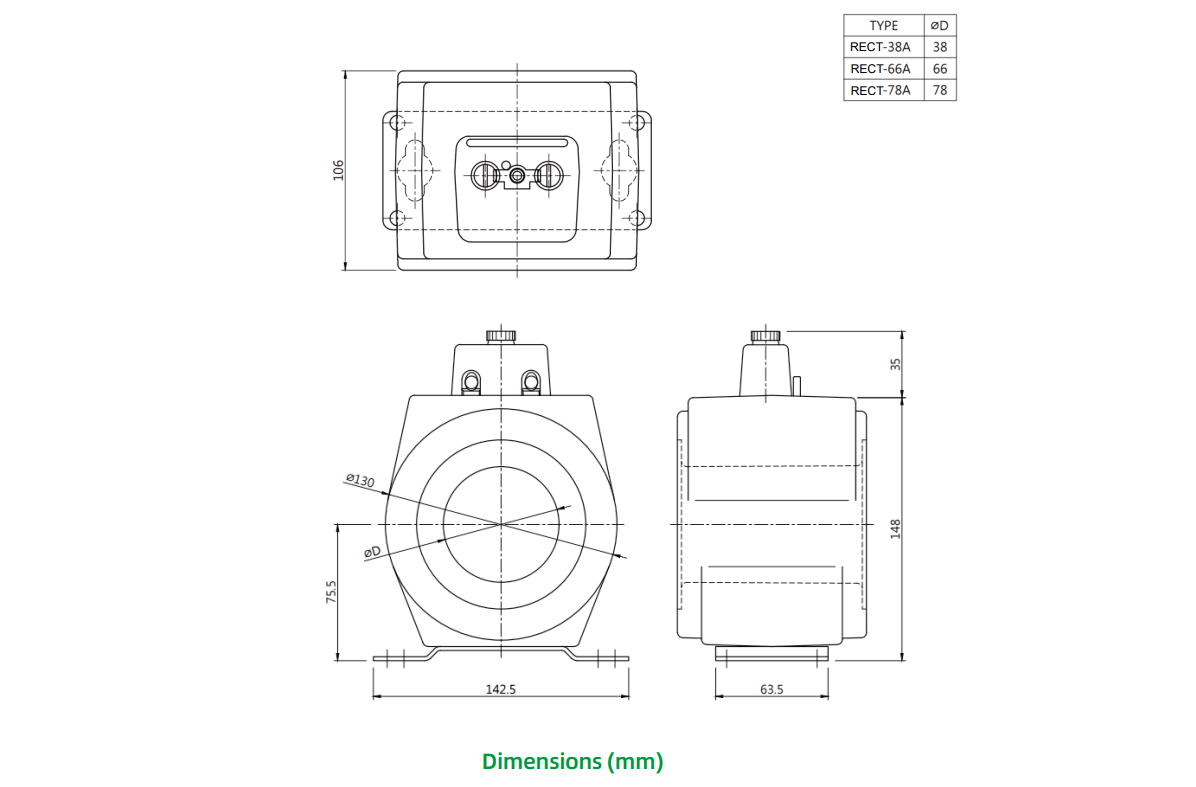

Dimensions
