Accurate and reliable current measurement is the cornerstone of ensuring system safety, improving operational efficiency, and realizing intelligent management in the precision network of modern power systems. Therefore, how to improve the performance of the current transformer, which is the core component of this critical link, determines the stability and efficiency of the whole system. Wenzhou Heyi Electric Co., Ltd., with its profound technical accumulation and persistent pursuit of quality, has launched the LMK series low-voltage current transformer. Its excellent measurement accuracy, extraordinary environmental adaptability, and flexible configuration solutions have made it widely used in the fields of industrial automation, intelligent distribution, new energy, and building construction.

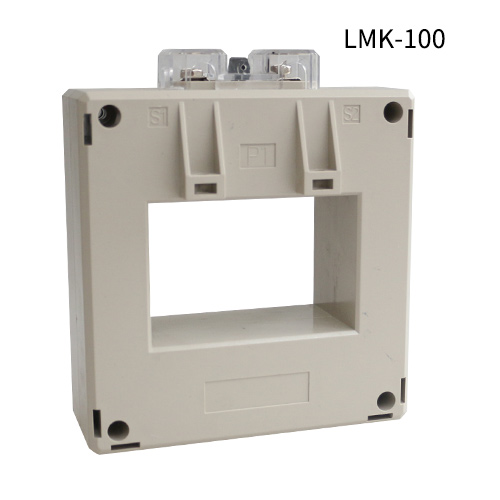

1.LMK series: a reliable choice designed for precise measurement of low voltage
The Heyi Electric series of products is a selection of high-performance current transformers that are carefully designed and crafted to work in AC circuits whose rated voltage does not exceed 0.66 kV. The LMK Series provides more than simple conversion of currents, but a "sensory nerve" capable of measuring the precise amount of electrical energy, intelligent protection of equipment, and reliable collection of system data.
The core philosophy in the design of 1.1 is "precision starts with the core." Since the very beginning of material selection, the product has strictly adopted high-quality silicon steel sheets with high magnetic conductivity and low loss as its core material, combined with high-purity oxygen-free copper windings. By incorporating fully automatic precision winding technology with a vacuum pressure coating treatment, tight and uniform insulation with excellent moisture resistance between coils has been ensured, building a foundation for high precision and reliability, prolonging service life at its very source.
2. Main competitive advantages of the LMK series: in-depth analysis
The outstanding performance of the low-voltage current transformers of the LMK series is contributed by multiple advantage matrices constructed at the technical, process, and application levels.
2.1 Unrivaled measurement accuracy and stability
The product series comprehensively covers multiple accuracy levels such as 0.2, 0.5, and 1.0, thus enabling the meeting of different levels of requirements from high-precision energy metering to general monitoring and protection. In particular, the demanding energy metering is enabled by the LMK-0.66 100/5 0.5 level, while the LMK-0.66 300/5 1.0 level can be employed in cost-sensitive monitoring circuits. It has excellent linearity and phase error characteristics, ensuring the authenticity and accuracy of the output signal even in wide load fluctuations or complex harmonic environments, offering a reliable data source for backend systems. Low-voltage current transformers provide such stability and therefore are a guarantee for long-term reliable operation.
2.2 Wide adaptability and flexible configuration

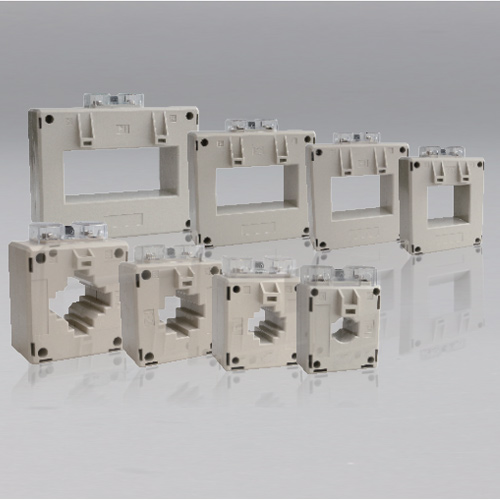

The rated primary currents of LMK series range from tens of amperes to thousands of amperes, with various configurations of current ratio available. From a small distribution box to a large distribution cabinet, there is always a matching model. For instance, for household measurement at buildings, compact LMK-0.66 20/5 can be used; while in the main incoming cabinet of the factory, LMK-0.66 1500/5 with high current can manage it. Such flexibility makes this low-voltage current transformer easily integrated into various existing system renovations or new construction projects.
2.3 Durable and sturdy, undaunted by harsh environments
As for products with casing made from high-strength, flame-retardant, and high-temperature resistant engineering plastics or metals, the structure is compact and well-sealed. Taking the LMK (B) -0.66 type for example, with its closed resin casting, it has a high protection level and can handle adverse situations present in harsh industrial sites: high temperatures, high humidity, dust, and oil pollution. This greatly lowers the failure rate and maintenance costs caused by the environment.
2.4 Convenient installation and integration experience
Given the convenience on-site construction, the LMK series has designed multiple installation methods. For example, the LMK(D) -0.66 model adopts a standard 35mm DIN rail snap fit installation, which is particularly suitable for rapid deployment in compact modular distribution boxes; The LMK-0.66 universal type provides panel screw fixed installation, suitable for traditional cabinets with ample space. The wiring terminal identification is clear, and greatly simplifies the installation steps.
3. Wide application scenarios: Empowering intelligent electronic control for thousands of industries
The following LMK-series low-voltage current transformers, due to their strong versatility, are active in several cutting-edge fields of power applications.
3.1 Intelligent distribution and energy management
This provides the main measure for various high/low voltage distribution cabinets, intelligent energy meters, and energy management systems. For instance, using LMK-0.66 400/5 0.5 level transformers on the property's total metering cabinet is able to precisely measure the total electrical energy and provide key data in terms of energy efficiency analysis, load monitoring, and cost accounting.
3.2 New Energy Power Generation System
Used for the precise sampling of AC currents at photovoltaic power plants' inverter output terminals and energy storage systems' charging/discharging circuit. The model LMK-0.66 250/5 is a key component to ensure the system is able to realize functions such as MPPT, charge and discharge control, and grid safety.
3.3 Industrial Automation and Motor Control
Provide current feedback signals in real time and accurately in PLC control systems, frequency converters, and motor protection circuits. For single motor protection, use LMK-0.66 50/5 1.0 level transformer, which is able to achieve overload protection, locked rotor detection, and equipment health status diagnosis.
3.4 Building Automation and Infrastructure
Power monitoring systems applied in such fields as intelligent buildings and data centers. For example, installation of the rail type transformer LMK (D) -0.66 100/5 in the precision air conditioning distribution circuits can realize real-time current monitoring for critical loads to guarantee safe and effective operation of infrastructure.
4.Choose Heyi Electric: Choose professionalism, quality, and full-service
Wenzhou Heyi Electric Co., Ltd. has been committed to deep cultivation and fine work in the field of transformer manufacturing. Equipped with advanced production and testing equipment, it has set up a stringent quality control system from research and development design, procurement of raw materials, production, and manufacturing to finished product testing to ensure that every LMK series product, whether standardized or customized, meets both GB national standards and IEC International Electrotechnical Commission standards.
