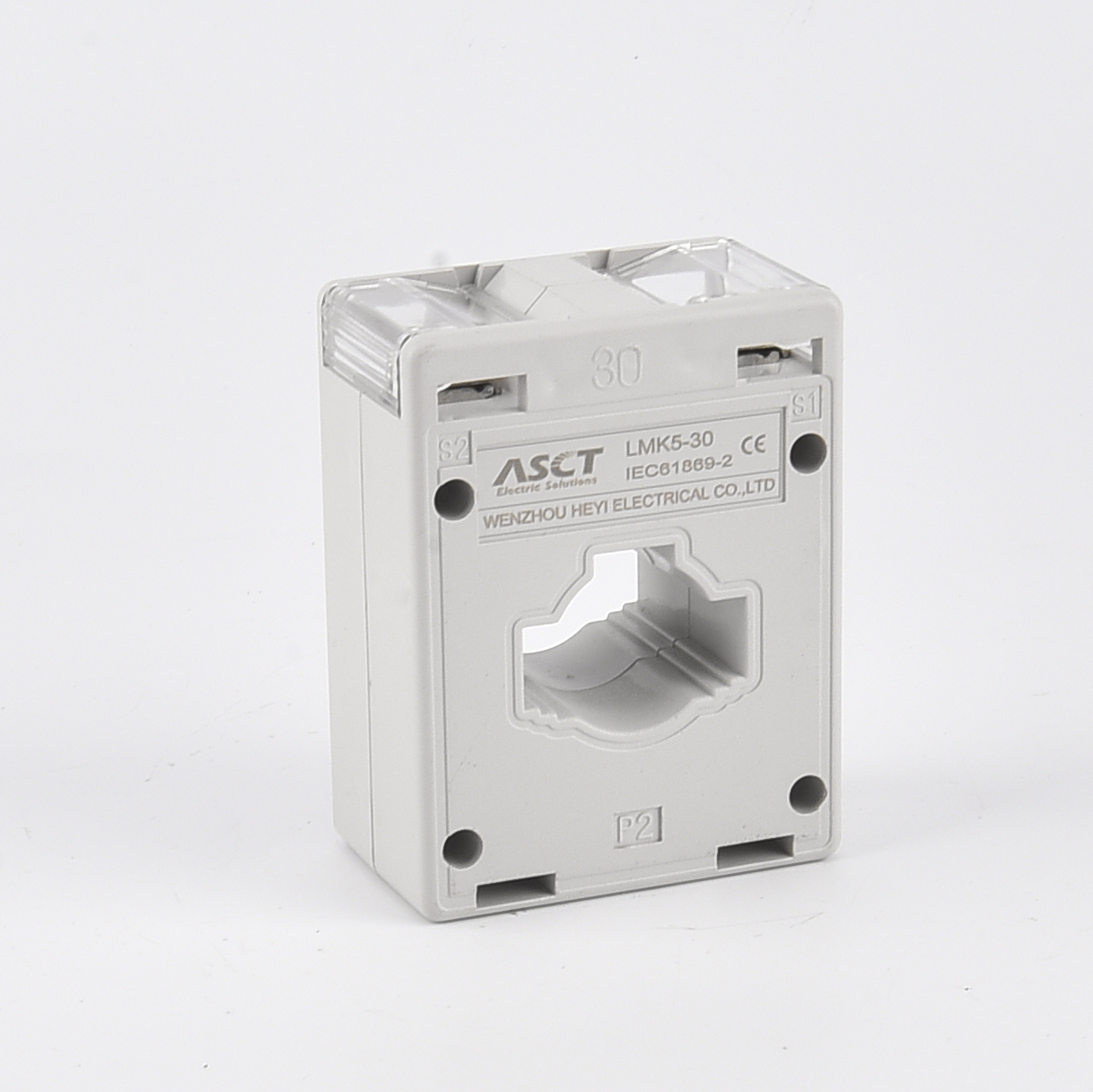

The reliability and accuracy of electrical converters are critical for tracking, controlling and protecting energy systems. Made by Wenzhou Heyi Electric Co., Ltd. The LMK5 series of electrical converters are designed to meet the high demands of modern industry for accurate measurement. Combining excellent design, stable performance, and a wide range of uses, it is a true protector of safety and energy efficiency.
1. Excellent design and strong appearance
The LMK5 series is a complete fusion of humanity and reliability in structural design.
1.1 Selection of safe and reliable materials
The case of the product is made of high quality imported polycarbonate material, which can withstand high temperatures up to 120 ℃ and meet UL94-V0 flame retardant standards. This not only provides the product with excellent safety performance, but also ensures long-term stability in electrical environments.
1.2 New structure and convenient installation

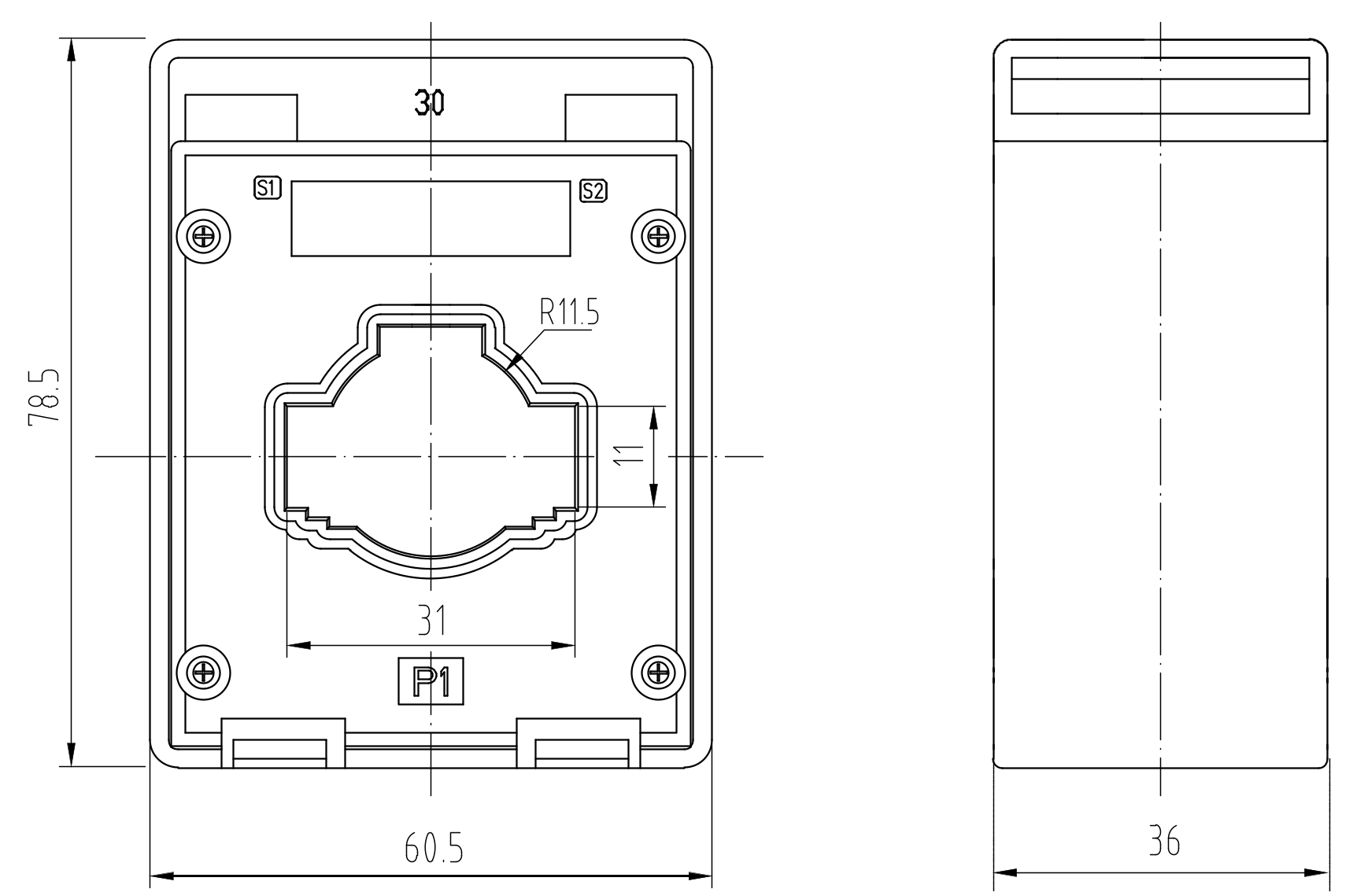

Featuring a compact and beautiful design, the LMK5 Din Raila Busbar offers a variety of installation methods for easy integration into a variety of cabinets and delivery systems. Save installation space and time.
2. Main performance and technical advantages
The performance of the products of this series is the key to winning the market, especially in order to achieve accurate measurement.
2.1 High precision and large capacity

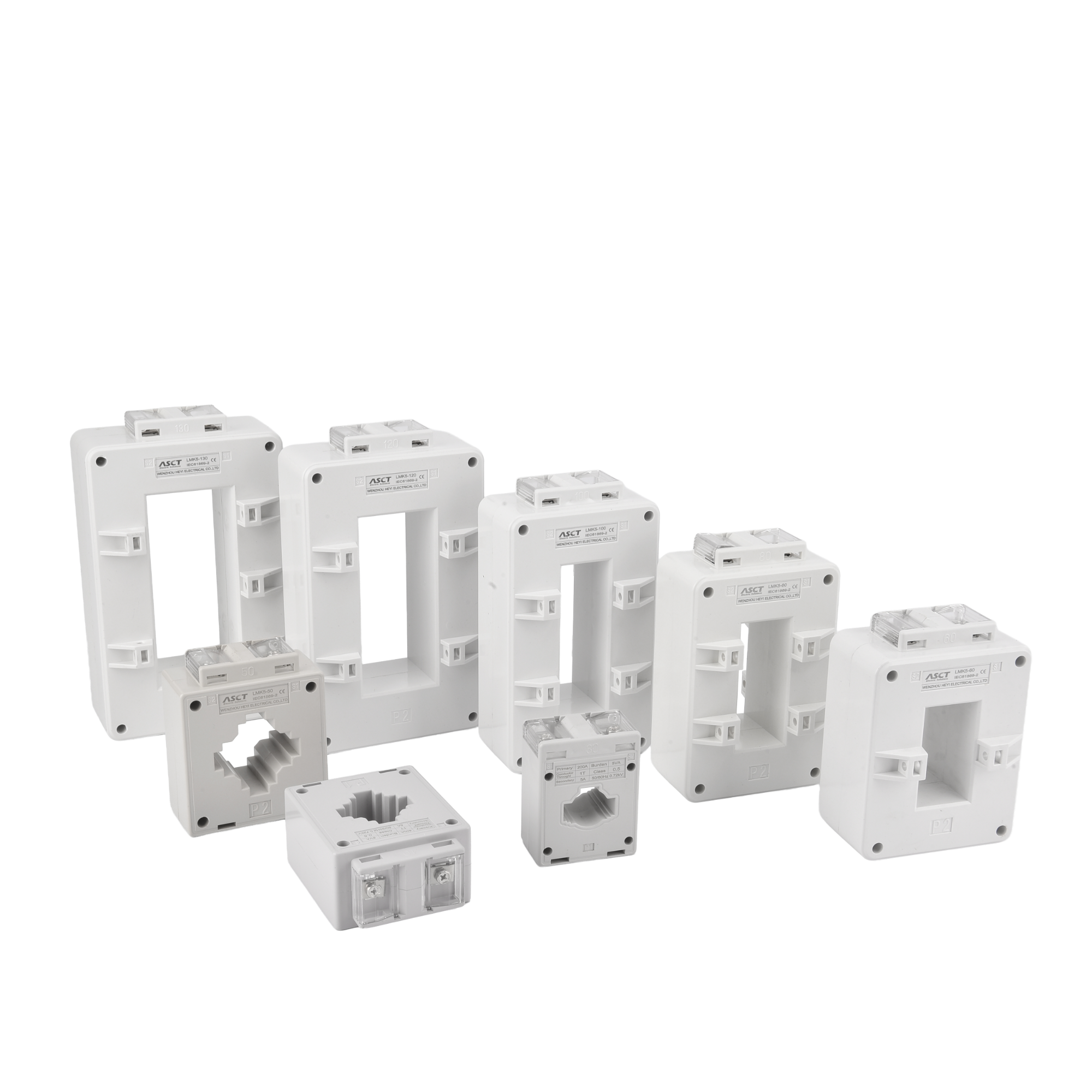

If LMK5, there are several precision levels options, including 0.2S, 0.5S, 0.5 and 1.0. The main current measuring range is 5A to 8000A cover, manufacture is standard 5A or 1A. The main ensures low loss and high linear signal transmission with a high-strength electrode. It lays the foundation of the hardware.
2.2 Electrical and mechanical parameters covered
The voltage of the product is operating frequency 50-60Hz, but the 0.72kV (AC) load range meets the requirements of various systems from 2.5VA to 30VA. There is a wide temperature range from -25 ℃ to +75 ℃ in the mechanical parameters of the operating environment. High moisture resistance (<85%RH is not adjustable) and reliable screw fastening method for rental.
3. Focus on measurement and protection of accurate systems
The LMK5 not only converts current, but also provides reliable measurement data to drive system decisions.
3.1 Provides a reliable signal for the protection system
This product is specifically designed to collect low voltage and short circuit overload signals and can work with Ray and Smooth to provide a variety of protection. Excellent transient response capability (e.g. dynamic steady current, which achieves 2.5 times the thermal steady current) ldyn) allows for signal input.
3.2 Guarantee of torque safety design
This product has good machine safety factor (FS<5) and meets strong international and domestic
standards such as IEC 61869-2 and GB1208-2006. The insulation level reaches class E(120℃), and has been tested for 3kV AC/1min resistance. Many safety barriers are installed inside to ensure that all accurate measurements are carried out under safe conditions.
4. Widely Available Situation
The flexibility of the LMK5 series allows you to handle multiple roles.
4.1 Tracking and control of industrial energy
Suitable for situations requiring testing, control, marking and recording of the operation of electrical equipment. It is the appropriate measuring element of plant automation systems and energy management systems.
4.2 Protection of critical equipment
Widely used in relay protection circuits of distribution systems, motors and other electrical equipment, it provides protection in front of equipment by accurate measurement negative currents.
4.3 Application to specific environments
This product is suitable for indoor environments where there is no direct intrusion of vines or eyes, severe pollution, severe vibration.It deals with a variety of situations.
5. Heyi Electric: Reliable Partner
Wenzhou Heyi Electric Co., Ltd. is deeply involved in the field of transmission. Adhering to the principles of technological innovation, we guide our customers' needs as a driving force. Electric transmission LMK5 series aims to provide customers with higher quality, more reliability, more accurate measurement, together.
