Introduction
Multimeter can accurately measure the three-phase power distribution system for all common power parameters:three-phase voltage, phase current, active power, reactive power, power factor, line frequency, active power, reactive power, and with communication interface and pulse output functions.
Working principle
Signal acquisition: Obtain physical quantity signals (such as voltage, current, temperature, pressure, etc.) through built-in sensors (such as current/voltage transformers, temperature probes, pressure sensors, etc.).
Signal processing: Convert analog signals into digital signals (ADC conversion), filter, calibrate and calculate through microprocessors to eliminate interference errors.
Functional operation: Calculate derived parameters (such as power, energy consumption, frequency, flow, etc.) according to preset algorithms, support alarm threshold judgment or data storage.
Output display: Display data intuitively through LCD/OLED screen, and support communication interface (RS485/4-20mA/Wi-Fi, etc.) to transmit to the host computer or cloud platform.
Application
Real-time monitoring of the voltage, current, power and other parameters of motors and inverters to ensure stable operation of equipment.
Energy consumption management in production lines to optimize production efficiency.
Power quality analysis (harmonics, power factor, etc.) in distribution cabinets and substations.
Smart grid data acquisition and remote monitoring (support Modbus, DL/T645 and other protocols).
Power generation monitoring and fault diagnosis of photovoltaic inverters and wind power systems.
Charge and discharge management of battery energy storage systems (voltage, SOC, temperature, etc.).
Energy consumption measurement and energy-saving control of central air conditioning and lighting systems.
Integrated measurement of smart meters, water meters and gas meters.
Temperature, humidity and stress monitoring of tunnels/bridges.
Real-time display of current and power of electric vehicle charging piles.
High-precision multi-parameter testing (such as synchronous acquisition of temperature + pressure + flow).
Customized alarm logic and data logging analysis.

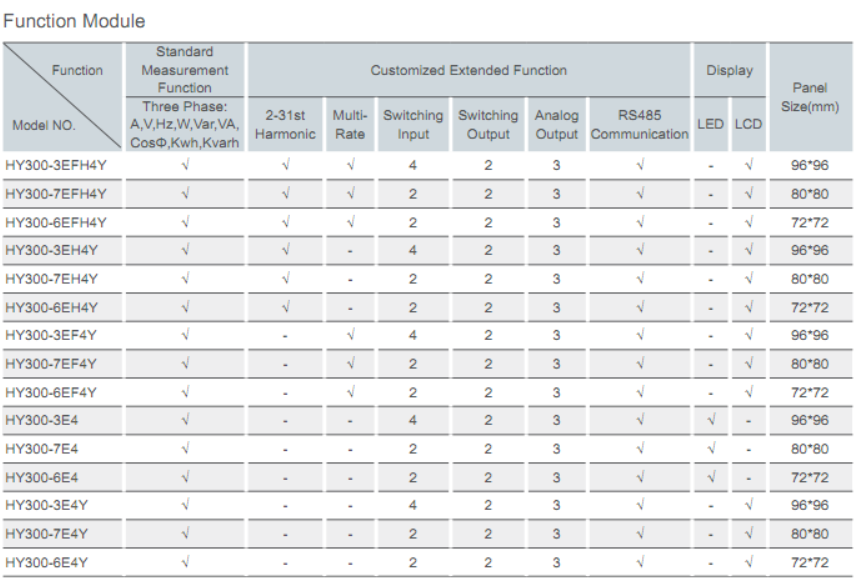

Measurement Accuracy
◎ Voltage: 0.5 Class
◎ Current: 0.5 Class
◎ Active Power(Watt): 1.0 Class
◎ Reactive Power(var): 1.0 Class
◎ Power Factor: 1.0 Class
◎ Frequency: ±0.2Hz
◎ Active Energy(kwh): 1.0 Class
◎ Reactive Energy(kvarh): 2.0 Class
Auxiliary Power Supply
◎ Working Range: AC220V or AC85V~265V/DC100V-300V
◎ Power Consumption: <4VA
Environment
◎ Working Temperature: -10℃ +55℃
◎ Storgage Temperature: -25℃ +70℃
◎ Relative Humidity: ≤93%, place without corrosive gas
◎ Altitude: s2500m
Safety
◎ Insulation Resistance: >100MΩ
◎ AC Withstand Voltage: AC 2KV
