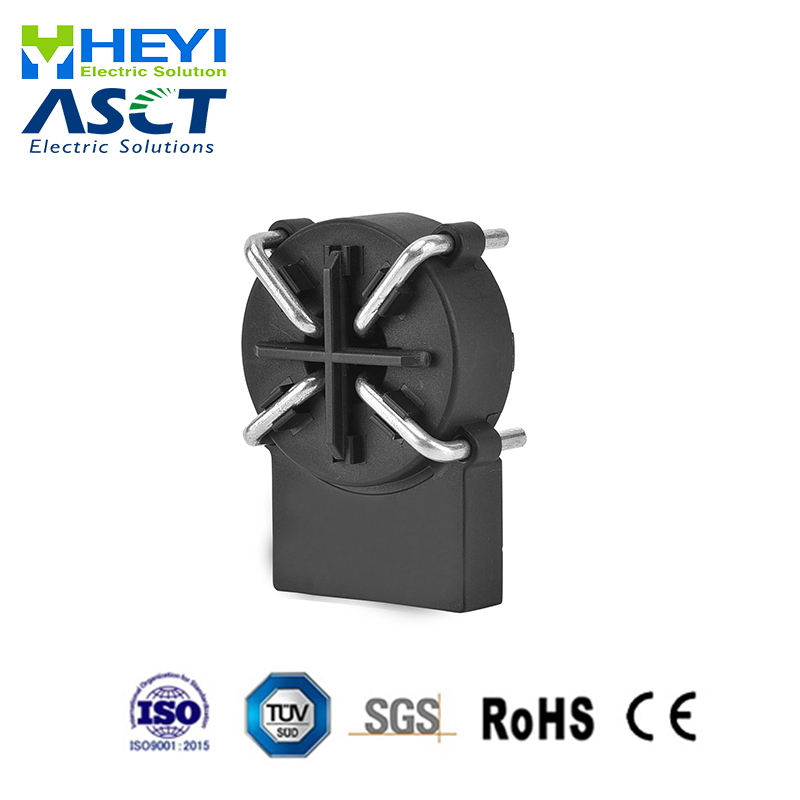

HYCA-01 is residual current operated protective sensor for EV charger.It’s to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). Generally, AC/DC sensitive residual current sensors can be used where direct current and alternating current and alternating current circuits are directly connected and therefore AC/DC leakage currents can occur.
| Electrical/Reliability Characteristics | |
| Working Temperature | -40℃~85℃ |
| Storage Temparature | -40℃~65℃ |
| Supply Voltage(VDD) | 4.85~5.15 VDC recommend 4.9-5.1 VDC |
| Static Power Consumption | 110mW |
| Clearance (Primary-Primary/Secondary) |
≥6.5mm ≥10mm |
| Creepage Primary-Primary/Secondary) |
≥8mm ≥10mm |
| Voltage Input, low level | 0~0.6VDC |
| Voltage Input, high level | 4.2~5VDC |
| Designed Life | ≥20 years |
| Working Altitude | ≤4000m |
|
Electrical data – Ratings: |
||||
|
Action current |
Unit | Min. | Typ | Max. |
|
Operating current S-DC |
mA | 20.0 | 23.0 | 26.0 |
|
Operating current 2PDC |
mA | 11.0 | 15.0 | 30.0 |
|
Operating current 3PDC |
mA | 10.0 | 20.0 | 30.0 |
|
|
||||
|
Operating time |
Unit | Min | Typ | Max |
| Limit values of break time@6mA DC | ms | 100 | 10000 | |
|
Limit values of break time@60mA DC |
ms |
50 | 300 | |
|
Limit values of break time@200mA DC |
ms |
50 | 100 | |
| Limit values of break time@60mA 2PDC | ms |
50 | 300 | |
| Limit values of break time@200mA 2PDC | ms |
50 | 100 | |
| Limit values of break time@60mA 3PDC | ms |
50 | 300 | |
| Limit values of break time@200mA 3PDC | ms |
50 | 100 | |
| No action time | Unit | Min | Typ | LOWER |
| Limit values of break time@30mA AC | ms |
∞ |
∞ | |
| Limit values of break time@60mA AC | ms |
∞ |
300 | |
| Limit values of break time@150mA AC | ms |
∞ |
80 | |
| Limit values of break time@5A AC | ms |
>80 |
80 | |
Dimensions
| Mechanical dimension(for reference only) | Note |
 |
 |
Standards
UL94-V0.
EN60947-1:2004
IEC60950-1:2001
EN50178:1998
SJ 20790-2000
