KBSG2-T mine flameproof dry type transformer

KBSG2-T mine flameproof dry type transformer

Description

Description

Introduce

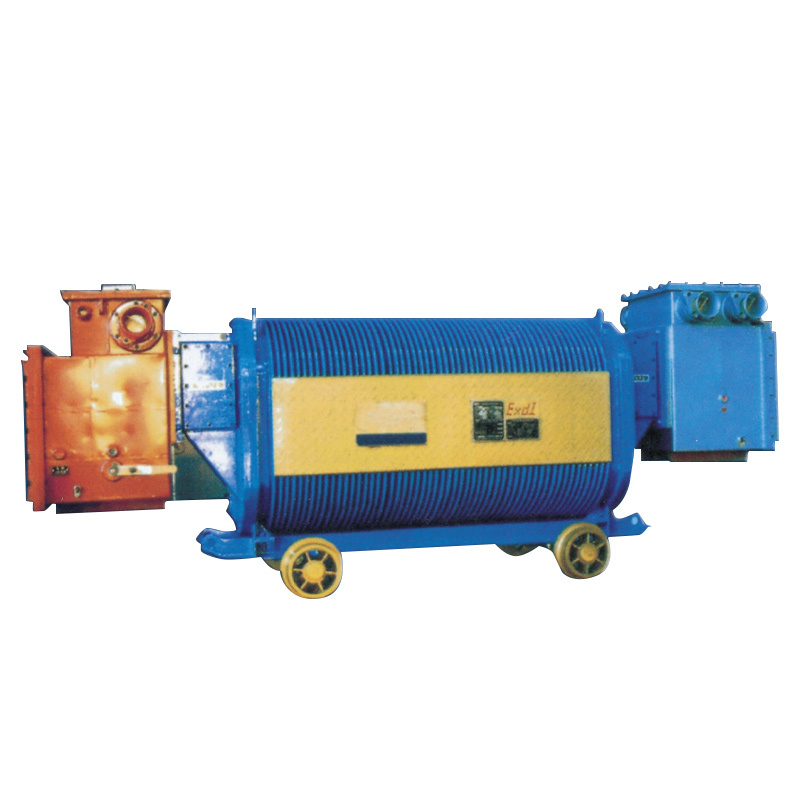

KBSG2-T mine flameproof dry type transformer(mobile substation) is suitable for methane mixed gas and coal dust, and there is adanger ofexplosionin the mine environment. but also suitable for metal corrosion and destroy theinsulation ofgas and steam environment. the transformer has high strength. low temperature rise.heatdissipation and moisture resistance. easy maintenance and so on.

mine flameproof dry type transformer fault analysis and troubleshooting

Fault phenomenon	Cause analysis	Elimination method
The temperature is too high or local overheating	1. Overload operation 2. Coil insulation damage causes local leakage 3. Core loss increases.	1. Check the usage load and adjust it 2. Repair the damaged parts 3. Repair the core
Abnormal or excessive noise	1. The iron core is loose 2. The coil pressure is loose	1. Tighten the bolts 2. Tighten the screws and tighten the coil
Low insulation resistance	Damp insulation	Bake or no load gradual transmission
Casing live	1. Casing is stained or damaged 2. The insulation of the lead cable is damaged or the bare cable is in contact with the cover 3. Low voltage coil leakage to the core	1. Decontamination or replacement 2. Identify the cause and eliminate it 3. Find out the part of leakage and eliminate it

10kVKBSG2seriesmineflameproof dry transformer technical parameters. dimensions
Rated capacity (kVA)	Voltage combination		Vector Group Symbol	wear and tear(W)		no-load current (%)	short circuit impedamce (%)	weight (kg)	boundary dimension(mm)
Rated capacity (kVA)	high pressure (kV)	low tension (kV)	Vector Group Symbol	no-load	Loadloss (75℃）	no-load current (%)	short circuit impedamce (%)	weight (kg)	L	M	H
100	10±5% 6±5%	0.693/0.4	Yyo(dll)	560	1050	3	4	2198	2260	800	868
200		0.693/0.4		960	1800	2.5		2482	2485	820	970
315		1.2/0.693		1300	2500	2.5		2773	2386	840	1075
400				1500	3000	2.5		3060	2566	860	1110
500				1750	3500	2.0		3570	2470	940	1150
630				2000	4100	2.0		4492	2680	1000	1180
800		1.2	Yyo	2300	5100	1.5		4868	2860	1060	1300
1000				2600	6100	1.5	4.5	5320	2900	1080	1400
1250				3100	7400	1.5	4.5	5860	3100	1150	149
